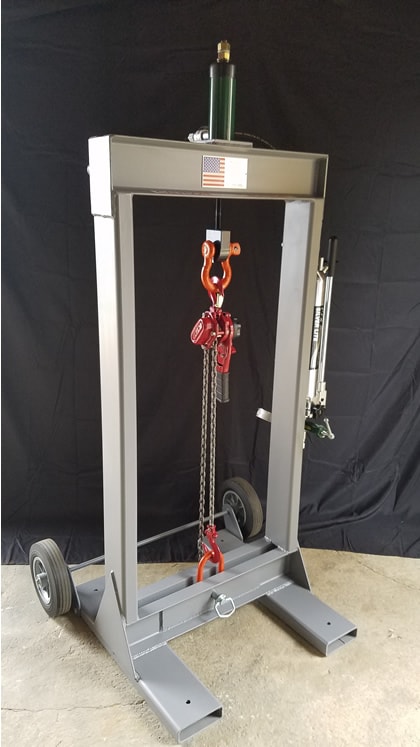

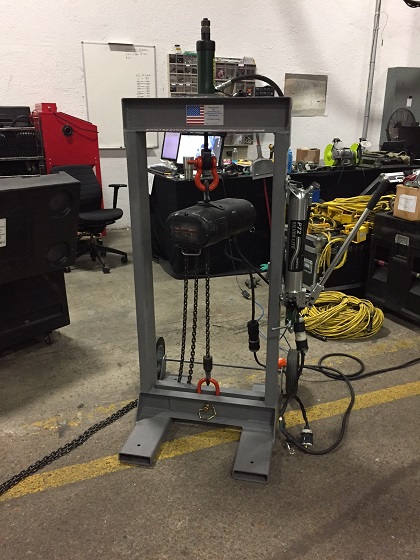

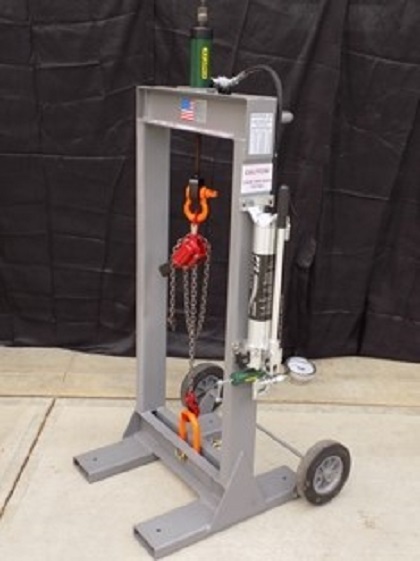

10 Ton Mobile Test Stand
The new Cert-A-Hoist, LLC 10 Ton Mobile Test Stand is designed for testing of hoisting equipment as required by the applicable sections of ASME Code B30.16 “Overhead Hoists” and ASME Code B30.20 “Below-The-Hook Lifting Devices”. Equipped with base mounted wheels and built in fork slots, the Cert-A-Hoist Mobile Test Stand can easily be moved to multiple inspection locations.
- Hand operated hydraulic pump eliminates the need for electrical power.
- Capable of applying test loads up to 10 tons (20,000 lbs.)
- Capable of static and dynamic testing.
- Tests the function of load limiting and overload devices.
- Rugged, reinforced steel frame construction for strength and durability.
- High quality hydraulic cylinder made for long life and durability.

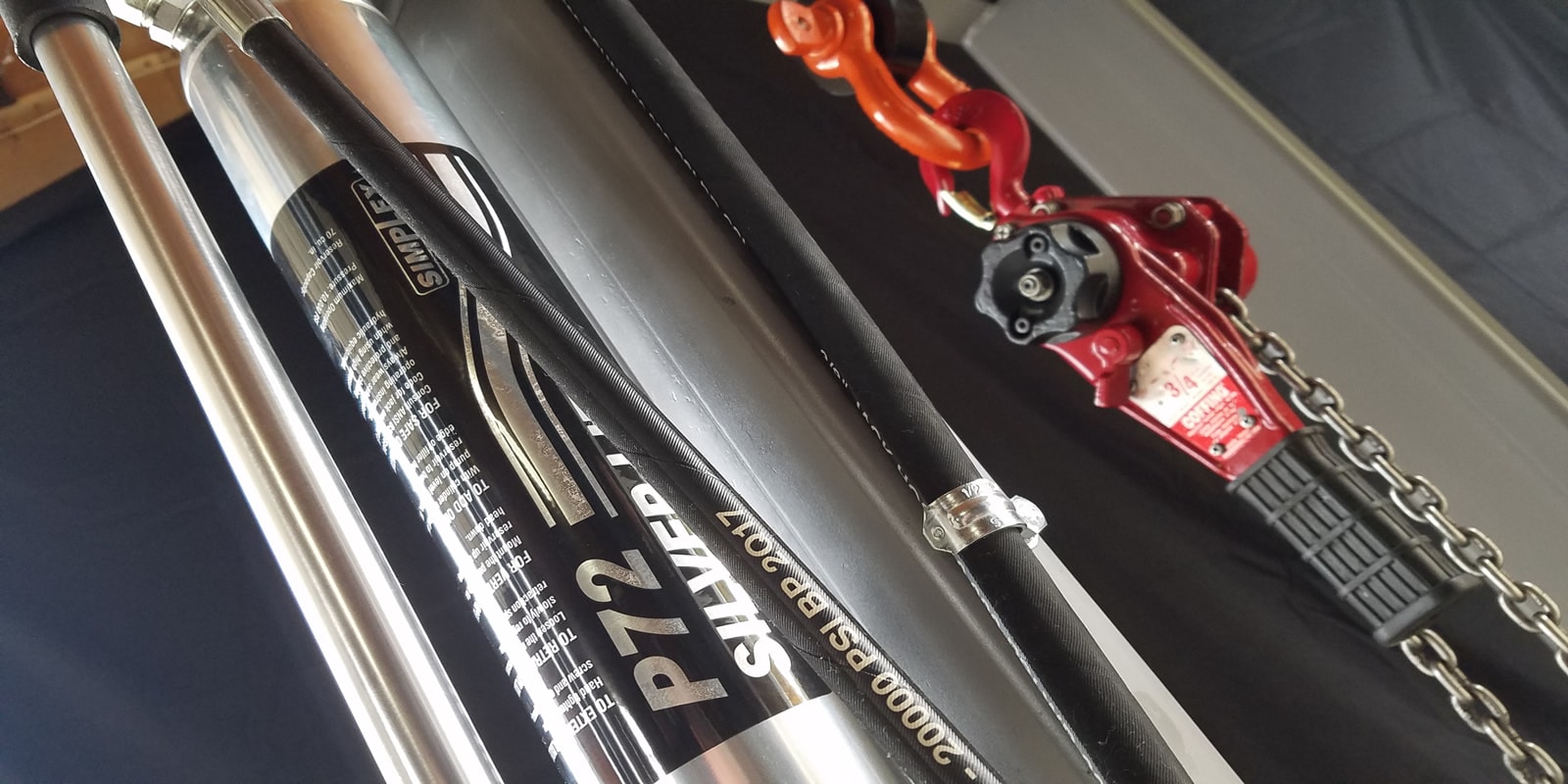

- Two stage, quick acting hand pump for speed and ease of operation.
- Fine adjustment pressure valve for accurate load testing.

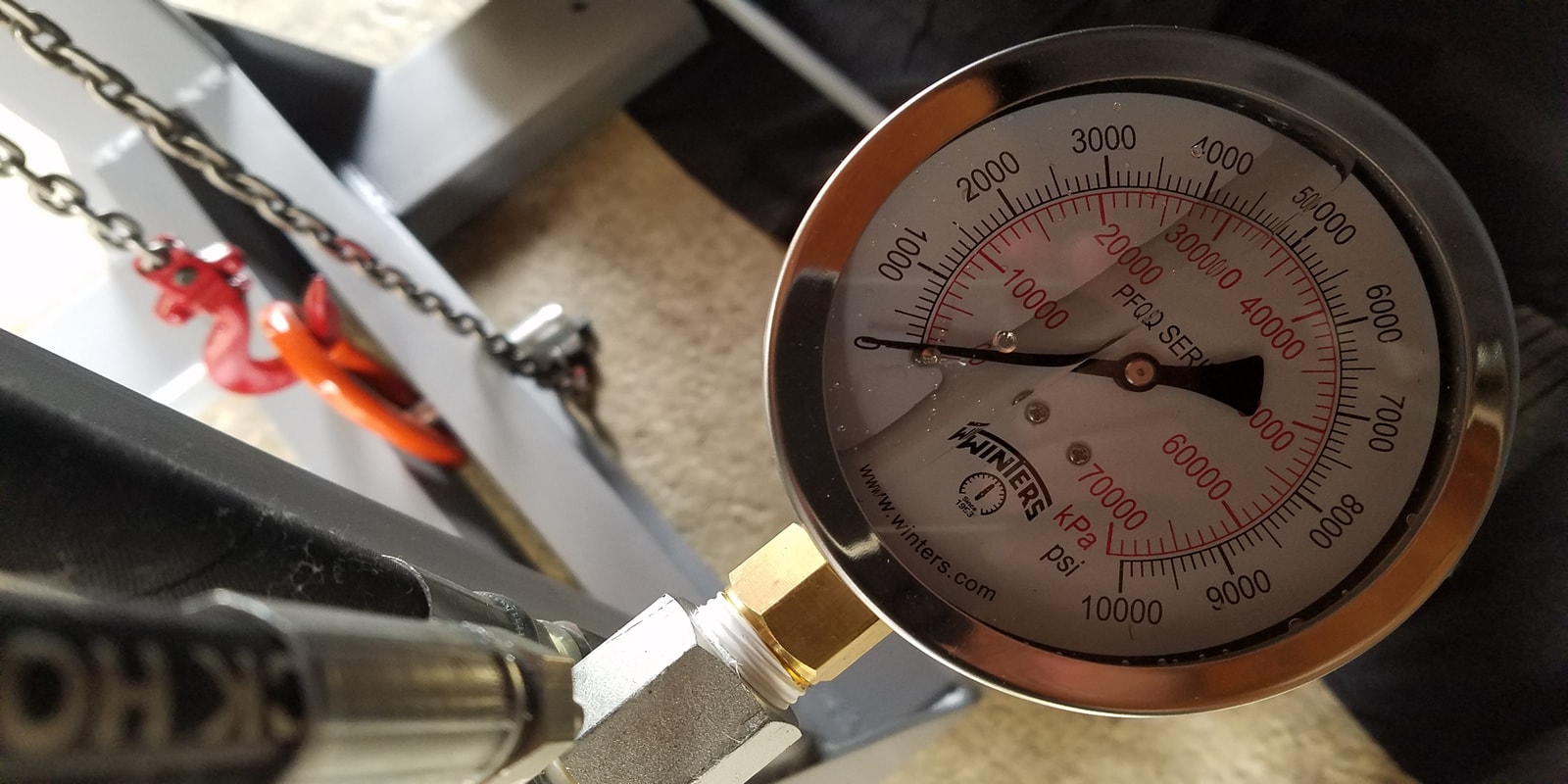

- Large pressure gauge for easy reading.
- Software for technical printout of test results.
- Hydraulic pump located on the side for safe operation.

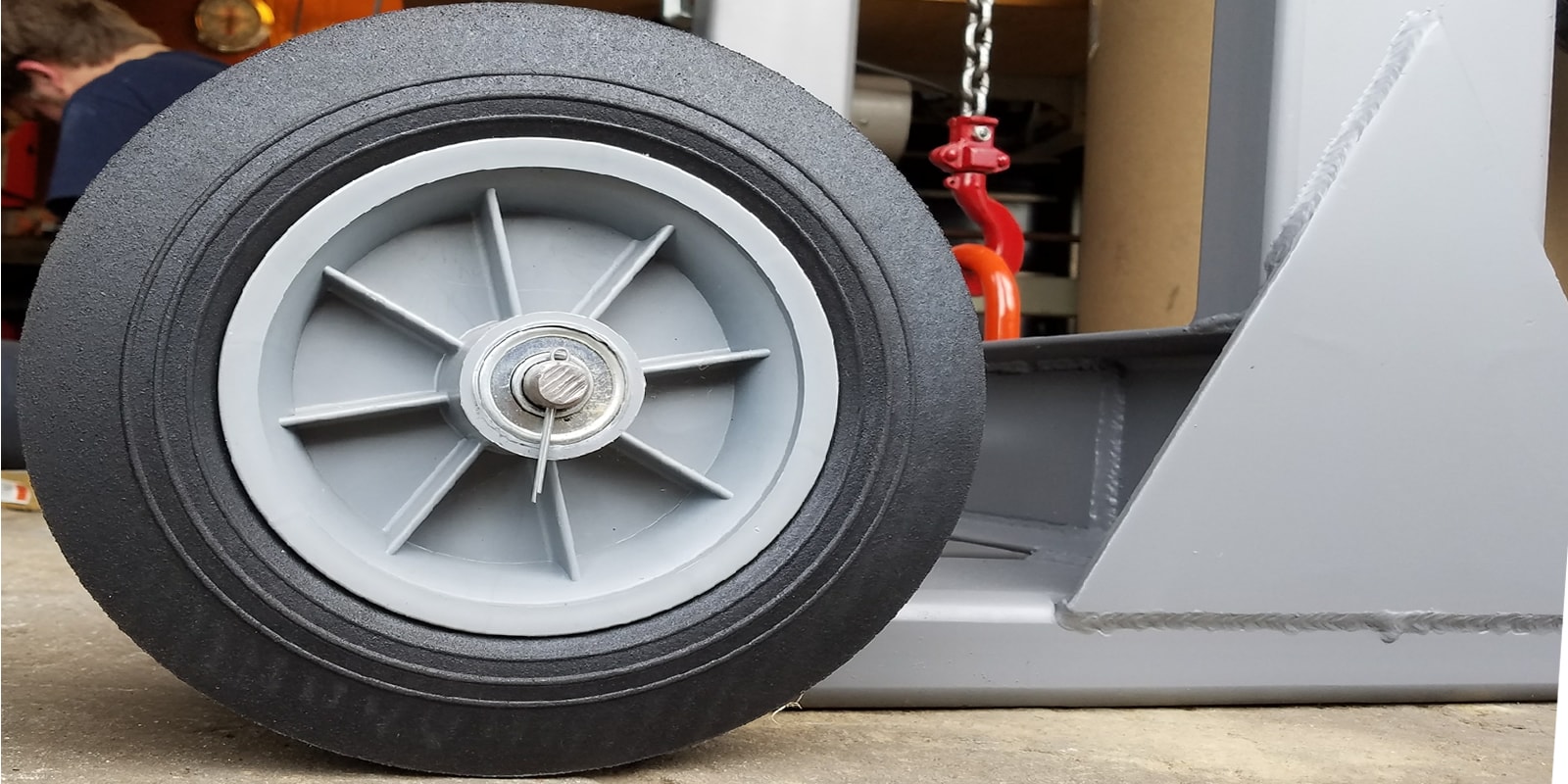

- Removable wheels with bolt holes in the base for permanent mounting.
- Average test time less than 45 seconds.
Technical Data
|
Overall Dimensions |
W-36” D-33” H-68.25” |
|
Hydraulic Cylinder Type |
Single acting, spring return |
|
Maximum pulling force |
10 tons (20,000 lbs) @ 6,355 p.s.i. |
|
Stroke |
3-1/2” inches |
|
22” between vertical supports |
48” height between bearing points |
Hydraulic Hand Pump
|
2 speed |
|
|
System pressure |
0 – 10,000 psi |
|
Weight |
265 lbs. |
|
Magnet plate weight |
110 lbs. |
